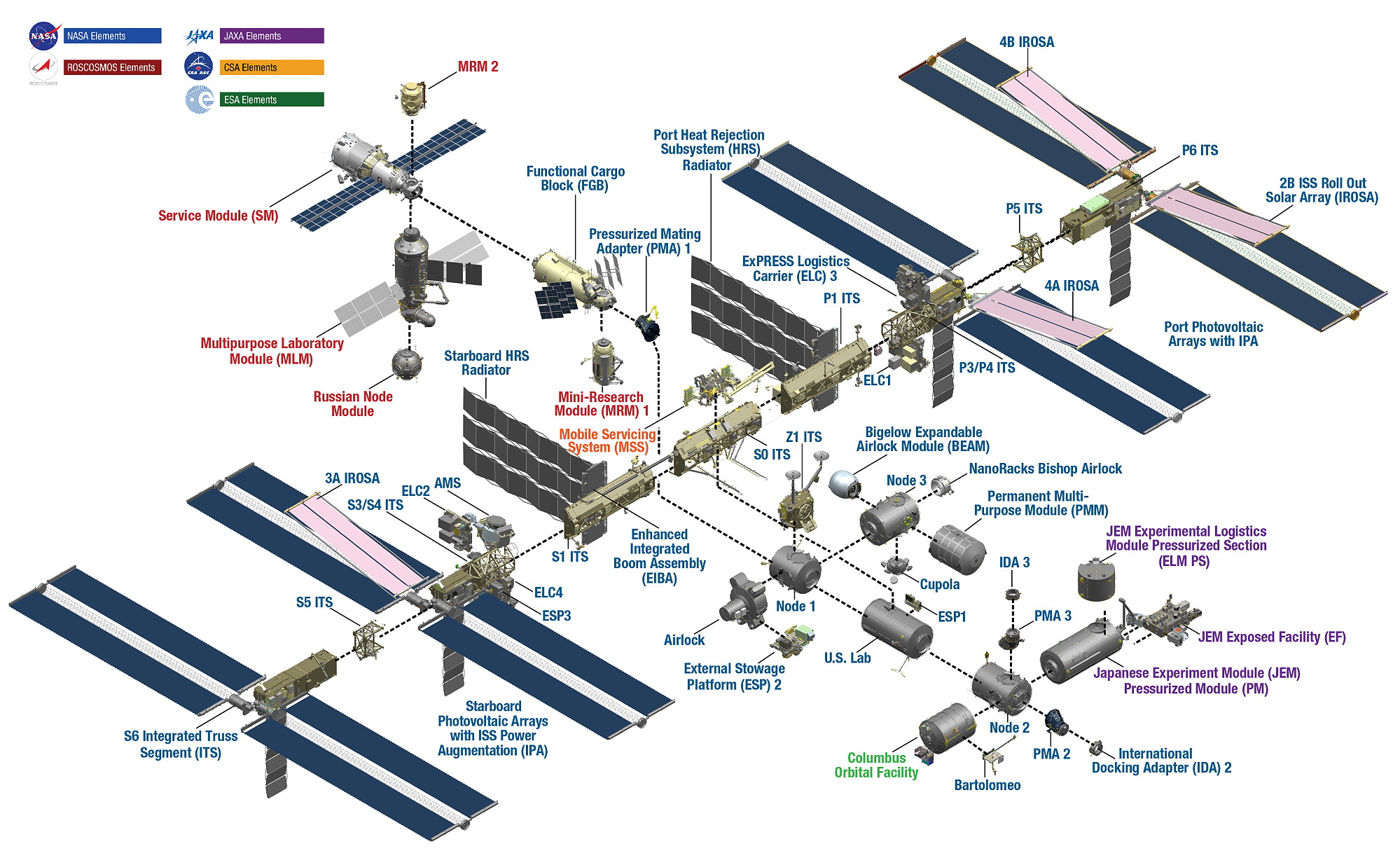

ISS Assembly

ISS Assembly

hi res version (529 KB)




20.11.1998

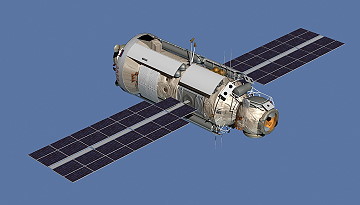

Launch of the Zarya Control Module with a Proton rocket.



04.12. - 15.12.1998
The crew of STS-88 docks the Unity node to the ISS.



27.05. - 06.06.1999
Nearly 2 tons of equipment were brought to the ISS and the Canadian built manipulator arm were mount by the crew of STS-96.



19.05. - 29.05.2000
The crew of STS-101 installed the final parts of the Russian built crane.



12.07.2000

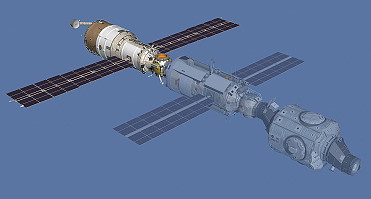

The Zvezda Service Module launched atop a Russian Proton rocket and docked to the Station two weeks later.



08.09. - 20.09.2000
STS-106 completed final connections (electrical-, data- and television cables) between Zvezda module and component Zarya.



11.- 24.10.2000
The crew of STS-92 attached the docking port, called Pressurized Mating Adapter 3 (PMA-3).

Expedition 1



01.- 11.12.2000
Attaching of the P6 solar array structure by the crew of STS-97.



07. - 20.02.2001
The crew of STS-98 docked the Destiny lab.

Expedition 2



08. - 21.03.2001
STS-102: PMA-3 repositioned from the berth to the port side of Unity to make room for Italian built Multi-Purpose Logistics Module "Leonardo".



19.04. - 01.05.2001
Installing of the Canadian built robotic arm (57.7 foot long) called Canadarm2 by the crew of STS-100.



12. - 25.07.2001
The crew of STS-104 attached Joint Airlock Module ("Quest").

Expedition 3



10. - 22.08.2001
Ammonia servicing unit and two science experiment packages attached by the STS-105 crew.

Expedition 4



05. - 17.12.2001
STS-108 brought three tons of supplies with the MPLM Raffaello cargo module.



08. - 19.04.2002
Integrated Truss Structure S0 and Mobile Transporter attached by the crew of STS-110.

Expedition 5



05. - 19.06.2002
Installation of the second component of Canada's Remote Servicing System to the ISS (STS-111).



07. - 18.10.2002
The crew of STS-112 attached the Star-board One (S1) Truss and the first (S0) Truss segment.

Expedition 6



24.11. - 07.12.2002
P1 solar array truss segment attached by the crew of STS-113.

Expedition 7



Expedition 8



Expedition 9



Expedition 10



Expedition 11



26.07. - 09.08.2005
Installation of the External Stowage Platform-2 Attachment Device (STS-114).

Expedition 12



Expedition 13



04. - 17.07.2006
The crew of STS-121 brought supplies with the MPLM cargo module.



09. - 21.09.2006
The crew of STS-115 installed the P3/P4 integrated truss and the solar arrays.

Expedition 14



10. - 22.12.2006
P5 truss segment attached (STS-116).

Expedition 15



08. - 22.06.2007
Installation of the S3/S4 truss by the crew of STS-117.



08. - 21.08.2007
S5 truss attached (STS-118).

Expedition 16



23.10. - 07.11.2007
The crew of STS-120 attached the Node 2 ("Harmony").



07. - 20.02.2008
European Columbus module attached by the crew of STS-122.



11. - 27.03.2008
The crew of STS-123 attached the Japanese Experiment Module ("Kibo") and the Canadian built Special Purpose Dexterous Manipulator ("Dextre").



03.04.2008
Arrival of the ESA built Automated Transfer Vehicle (ATV)

Expedition 17



31.05. - 14.06.2008
The JEM PM and the JEM RMS was attached by the crew of STS-124.

Expedition 18



15. - 30.11.2008
The crew of STS-126 brought with MPLM Leonardo supplies and equipment to the ISS.



15. - 28.03.2009
ITS-S6 attached by the crew of STS-119.

Expedition 19



Expedition 20



15. - 31.07.2009
The JEM EF, JEM ELM-ES was attached by the crew of STS-127.



29.08. - 12.09.2009
The crew of STS-128 brought with MPLM Leonardo supplies and equipment to the ISS.



17.09.2009
Arrival of the JAXA built HTV

Expedition 21



16. - 27.11.2009
ELC-1 ELC-2 attached by the crew of STS-129.

Expedition 22



08. - 22.02.2010
The crew of STS-130 attached the Tranquility node and the Cupola.

Expedition 23



05. - 20.04.2010
The crew of STS-131 brought with MPLM Leonardo supplies and equipment to the ISS.



14. - 26.05.2010
ICC, MRM-1 (now Rassvet), ERA attached by the crew of STS-132.

Expedition 24



Expedition 25



Expedition 26



24.02. - 09.03.2011
ELC-4 and PMM attached by the crew of STS-133.

Expedition 27



16.05. - 01.06.2011
ELC-3 and AMS attached by the crew of STS-134.

Expedition 28



08. - 21.07.2011
The crew of STS-135 brought with MPLM Raffaello supplies and equipment to the ISS.



Expedition 29



Expedition 30



Expedition 31



Expedition 32



Expedition 33



Expedition 34



Expedition 35



Expedition 36



Expedition 37

Patch ISS-37


Expedition 38

Patch ISS-38


Expedition 39

Patch ISS-39


Expedition 40

Patch ISS-40


Expedition 41

Patch ISS-41


Expedition 42

Patch ISS-42


Expedition 43

Patch ISS-43


Expedition 44

Patch ISS-44


Expedition 45

Patch ISS-45


Expedition 46

Patch ISS-46


Expedition 47

Patch ISS-47


Dragon SpX-8 or CRS-8 brought
the module BEAM to the ISS

BEAM

Expedition 48

Patch ISS-48


Dragon SpX-9 or CRS-9 brought
docking adapter IDA-2 to the ISS



Expedition 49

Patch ISS-49


Expedition 50

Patch ISS-50


Expedition 51

Patch ISS-51


Expedition 52

Patch ISS-52


Expedition 53

Patch ISS-53


Expedition 54

Patch ISS-54


Expedition 55

Patch ISS-55


Expedition 56

Patch ISS-56


Expedition 57

Patch ISS-57


Expedition 58

Patch ISS-58


Expedition 59

Patch ISS-59


Expedition 60

Patch ISS-60


Dragon SpX-18 or CRS-18 brought
docking adapter IDA-3 to the ISS



Expedition 61

Patch ISS-61


Expedition 62

Patch ISS-62


Expedition 63

Patch ISS-63


Expedition 64

Patch ISS-64


Dragon SpX-21 or CRS-21 brought
the Bishop Airlock to the ISS



Expedition 65

Patch ISS-65


Russian science module Nauka
docked to ISS

Dragon SpX-22 or CRS-22 brought
iROSA panel 2B und 4B to the ISS

Nauka

Expedition 66

Patch ISS-66


Russian docking module Prichal
docked to ISS



Expedition 67

Patch ISS-67


Expedition 68

Patch ISS-68


Dragon SpX-26 or CRS-26 brought
iROSA panel 3A und 4A to the ISS



Expedition 69

Patch ISS-69


Expedition 70

Patch ISS-70
